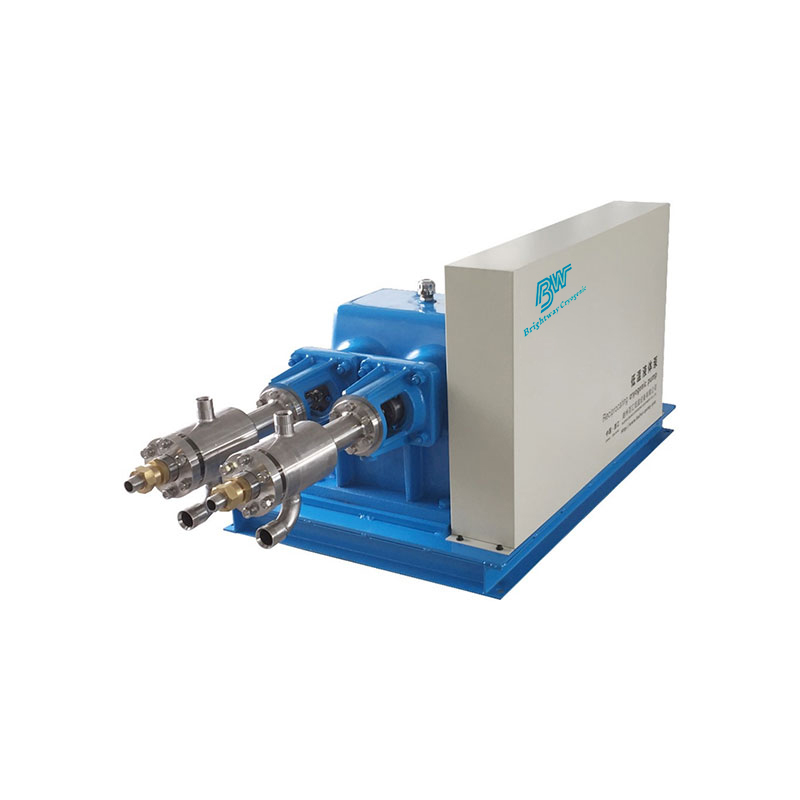

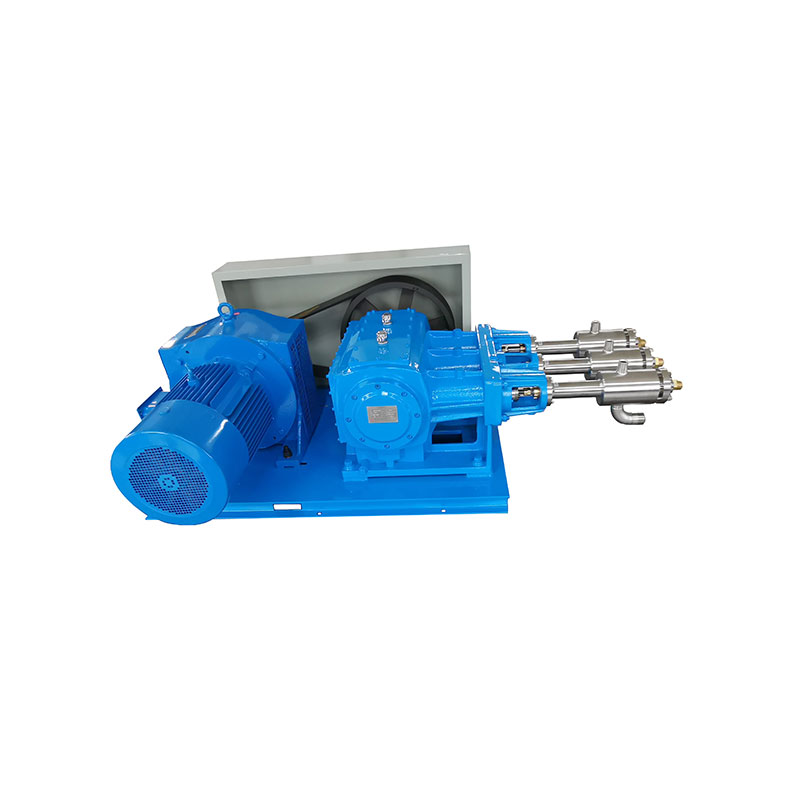

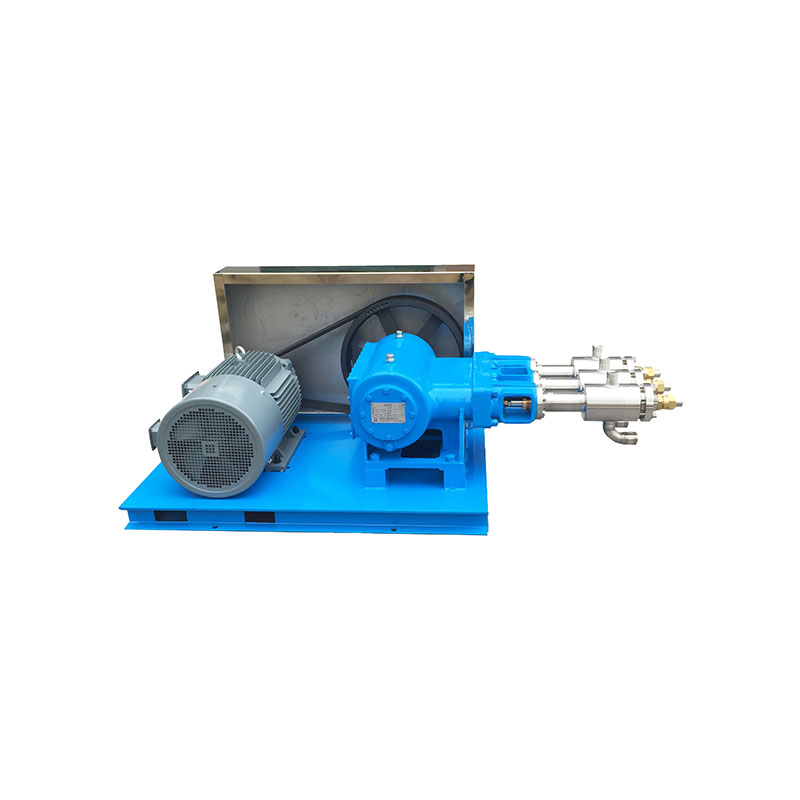

Cryogenic pump of intermediate pressure and large flow

Cryogenic liquid pump

The function of the drive end of the pump is to change the rotating motion of the motor into a reciprocating motion and slow down the speed, and transfer the output power of the motor to the bottom of the cold end. The motor is converted and slowed down by the belt pulley, drive shaft, eccentric wheel, connecting rod and cross head components. The shaft, eccentric wheel and bearing structure of the transmission system are splash oil type, which makes the life of the power system greatly extended. The compression end of the cold end consists of a filter, a cylinder liner, a pump body, a piston assembly, a seal ring, a liquid inlet valve, a liquid discharge valve, etc.
The transmission structure is a cross head structure, which has a long service life;
The cold end adopts high vacuum cold end jacket type, which has small cooling loss, less vaporization and short pre-cooling time.
Suitable Media: LO2、LN2、LAr、LNG、LC2H4、LN2O

Contact Us
  • Specifications
  • FAQ
  • Do You Have Any Question?
  • Scope of Application：
    Gas supply systems for large and medium steel mills
    Filling of dewar bottlers
    Filling of storage tanks
    Other medium pressure air supply systems

    Main Technical Parameters:
    Flow : 300- 35000L/h
    Max outlet pressure:3.0MPa ~ 8.0MPa

    Optional Configuration:
    Stationary motor/Electromagnetic speed regulating machine/Variable frequency speed motor
    Safety valve/Cryogenic stop valve
    Gas return temperature interlocking device
    Air outlet temperature interlocking device
    Air outlet pressure interlocking device
    Model Type Flow range L/h Inlet pressure MPa Max Outlet Pressure Mpa
    BH600-1200/30 Single
    Horizontal
    Piston    		 600-1200 0.02～0.8 3.0
    BH1000-3000/30 1000-3000
    BH1000-2000/60 1000-2000 0.02～0.8 6.0
    BH1000-3000/60 1000-3000
    BH2000-4000/30 Double
    Horizontal
    Piston    		 2000-4000 0.02～0.8 3.0
    BH3000-6000/30 3000-6000
    BH2000-4000/60 2000-4000 0.02～0.8 6.0
    BH3000-6000/60 3000-6000
    BH4000-8000/30 Triple
    Horizontal
    Piston    		 4000-8000 0.02～0.8 3.0
    BH5000-10000/30 5000-10000
    BH8000-15000/30 8000-15000
    BH5000-10000/60 5000-10000 0.02～0.8 6.0
    BH8000-15000/60 8000-15000
    BH10000-20000/30 10000-20000 0.02～0.8 3.0
    BH20000-35000/30 20000-35000
